Style 550,556
Aramid
Packing
Braided
aramid packing treated with lubricant. Extremely strong characteristic
makes it ideal packing for abrasive applications such as sand slurry and
paper slurry. Impregnated with PTFE dispersion is also available.
Temperature:
550°F
(260°C)
pH: 3-11
Pressure:
500 PSI (35 bar)
Speed:
1900 FPM
|
 |
|
|
|
Style 583
High Performance Synthetic
Packing
Braided
using Novaloid yarn, style 582
is an excellent general-purpose pump packing. Impregnated with PTFE and
special break-in lubricant. .
Temperature: 480°F
(250°C)
Pressure:
300 PSI (20 bar)
Speed: 2000 FPM
|
 |
|
|
|
Style 493,492S
Flax
Braided
flax fiber of the highest quality. Finished braid is impregnated with
waterproof hydraulic lubricant. graphite coated. Service packing for the
marine industry.
Temperature: 250°F
(120°C)
pH: 5-9
Construction: Interlocked
Pressure:
250 PSI
Speed: 1200 FPM
*492S is square braid construction with
petroleum wax and graphite lubrication.
|
 |
|
|
|

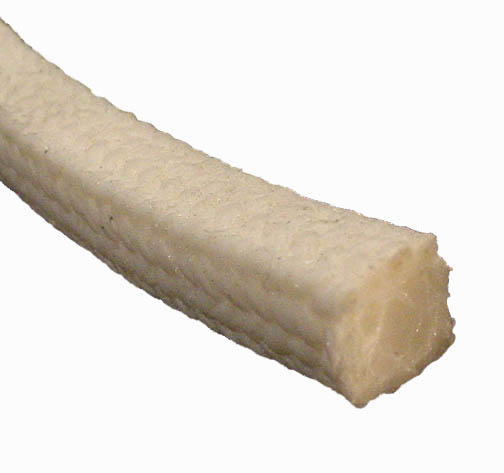

Style 585
Papermill /Caustic Packing
Braided
using YC Thermo Fiber, impregnated with PTFE. Style 585 provides
outstanding leakage control, excellent heat resistance and easy on the
shaft. Ideal for high caustic levels seen in pulp and paper, chemical
process. .
Temperature: 550°F
(260°C)
pH: 1-13
Pressure:
300 PSI (20 bar)
Speed: 2000 FPM
|
 |
|
|
|

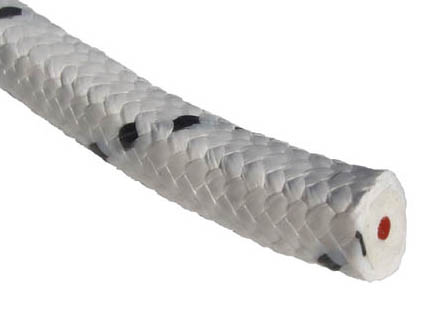

Style 578
Tank
Lid Packing
Style
578 is designed with a high pressure-resilient rubber core, which is
wrapped with high temperature resistant fiber. The core is then
over-braided with chemical resistant fiber yarn. The combination of
rubber core and chemical resistant fiber yarn make style 999 an
excellent packing to use on tank covers, hatches and lids on road and rail.
Temperature: 210°F
(100°C)
pH: 0-14
Pressure:
200 PSI (15 bar)
Speed:
1000 FPM
|
|
|
|
|

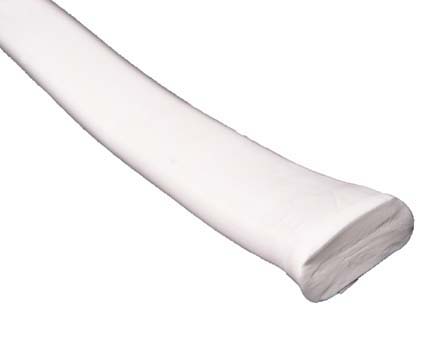

Style T12
PTFE Joint
Sealant
100% expanded virgin PTFE joint sealant. Long lasting, inert to all
common chemicals with self adhesive backing.
Temperature: 600°F
(315°C)
pH: 0-14
Pressure:
3000 PSI (200 bar)
|
 |
|
|
|
|
|
|
|
