Spiral Wound Gaskets
|
YC Industries supplies all styles of Spiral Wound Gaskets with full range of metal
alloys and fillers. Our Spiral Wound Gasket Products are
manufactured in accordance with ASME B16.20 and our gasket
products are used through out all industry
|
|
|
Filler Materials: |
Flexible Graphite, PTFE, Non-Asbestos and Ceramic |
|
Windings Strips: |
Stainless Steel 304, 316L are standard. Others:
Monel®, Inconel®,
Nickel®,
Titanium®, Carbon Steel |
|
Guide
Ring Materials: |
Our
Standard is Carbon Steel. Others: Stainless Steel
304, 316, Monel®,
Inconel®, Nickel®,
Titanium®, |
|
 |
|
|
|
|
|
|
Style GW
Style GW-Style Spiral Wound Gasket consists spiral
winding only. Used mostly in tongue and groove,
male/female flanges.
|
 |
|
|
|
|
|
|
Style GIR
Spiral Winding +
Inner Ring
Contains a Solid Inner Metal Ring. Application
similar to style GW.
|
 |
|
|
|
|
|

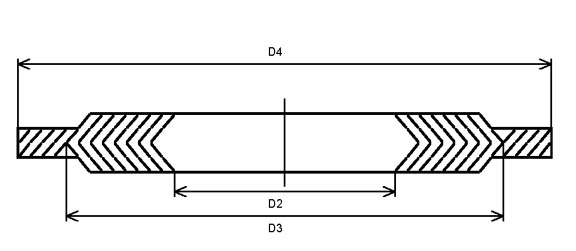

Style GCR
Spiral Winding +
Outer Ring
Contains an Outer, External Ring usually made
with Carbon Steel. This style is most commonly
used. Used with raised and flat faced flanged
|
 |
|
|
|
|
|
Style G2R
Spiral Winding + Outer Ring + Inner Ring
This Gasket contains Spiral Winding, Outer Ring
and an Inner Ring. Commonly used with flat face
and raised face flanges. Recommended for high
pressure/temperature services.
ASME B16.20 requires Inner Rings on Gasket with
PTFE fillers |
 |
|
|
|
|
|
|
|
|
